Summary
Energizing the Future: The Role of Low-Voltage Inverters in the Energy Transition explores the critical function of low-voltage inverters within the global shift toward sustainable energy systems. As the world increasingly adopts renewable energy sources like solar and wind power to mitigate climate change, low-voltage inverters have become essential for converting direct current (DC) from these sources into alternating current (AC) compatible with residential, commercial, and small-scale grid applications. Their cost-effectiveness and adaptability make them particularly important for decentralized energy systems, enabling greater self-consumption and energy efficiency in distributed generation setups.
This technology is notable not only for its widespread deployment in rooftop photovoltaic (PV) systems, battery storage, and small wind turbines but also for its evolving role in grid stability and power quality management. Low-voltage inverters support ancillary grid services such as reactive power compensation, load-frequency control, and low-voltage ride-through (LVRT), helping to maintain voltage and frequency stability in increasingly inverter-dominated power networks. However, their integration presents challenges related to control complexity, nonlinear system dynamics, and reduced grid inertia compared to traditional synchronous generators, which can affect grid resilience during large disturbances.
Advancements in semiconductor technology—particularly the adoption of wide-bandgap materials like silicon carbide (SiC) and gallium nitride (GaN)—have driven significant improvements in inverter efficiency, power density, and thermal performance, enabling more compact and reliable devices suited for modern energy demands. Alongside these technical gains, lifecycle assessments highlight environmental considerations in inverter manufacturing and disposal, underscoring the need for sustainable design and recycling practices to minimize ecological impacts.
Despite their crucial contributions, low-voltage inverters face ongoing regulatory, economic, and technical hurdles. Variations in grid codes, voltage regulation issues in low-voltage networks, and the need for advanced control algorithms complicate their deployment and integration. Nevertheless, continued innovation and policy support are expected to enhance their role in the energy transition, fostering resilient, efficient, and cleaner power systems worldwide.
Background
The global energy landscape is undergoing a significant transformation driven by the urgent need to reduce greenhouse gas emissions and combat climate change. This transition from fossil fuel-dependent sources to renewable energy technologies highlights the critical role of power electronics, particularly inverters, in enabling sustainable energy systems. In this context, low-voltage inverters have emerged as vital components that convert direct current (DC) electricity from renewable sources such as solar panels, batteries, or wind turbines into alternating current (AC) electricity suitable for everyday use.
Low-voltage inverters facilitate the practical and affordable adoption of renewable energy at small to medium scales, supporting increased self-consumption and enhancing overall energy efficiency. Although these inverters may experience higher losses due to elevated currents, resulting in greater heat production and reduced efficiency, their cost-effectiveness and suitability for smaller installations make them an essential technology for decentralized energy systems. Meanwhile, medium-voltage inverters are being increasingly implemented in large-scale renewable energy plants and grid systems, offering advantages over low-voltage options for broader applications and grid integration.
With the rising integration of inverter-based resources (IBRs) in areas with abundant sunlight and wind, system stability challenges have emerged. The increased concentration of IBRs can reduce grid inertia and system strength, thereby affecting frequency and voltage stability. This necessitates careful consideration of control strategies, such as those employed in Voltage Source Converter (VSC) systems, which utilize outer control loops to regulate real and reactive power and inner loops to manage current references. However, nonlinearities in these systems can lead to instability during large disturbances, highlighting the differences between inverter-based sources and traditional synchronous generators.
As the energy transition accelerates, understanding and addressing the environmental impacts and technical challenges associated with widespread deployment of power electronic systems remain critical. The integration of low-voltage inverters is central to these efforts, helping to establish a more resilient and environmentally friendly energy infrastructure for the future.
Technical Overview
Inverters are electronic devices that convert direct current (DC) into alternating current (AC), playing a crucial role in enabling the integration of renewable energy sources into modern power systems. Low-voltage inverters specifically operate at input voltages below 1000 volts, distinguishing them from high-voltage inverters used primarily in industrial or utility-scale applications. These low-voltage systems are essential for residential and small-scale renewable energy installations, converting DC electricity generated by solar panels, batteries, or wind turbines into usable AC power suitable for everyday consumption.
The functional unit for evaluating power electronic inverters, including low-voltage variants, is typically defined in terms of operational time and performance context. For instance, traction inverters used in automobiles are often assessed with an average lifespan of 15 years or approximately 10,000 hours of functional operation. This approach ensures consistent life cycle assessment (LCA) and system boundary definitions, which are critical for comparative studies and environmental impact evaluations.
Low-voltage inverters generally interface with battery systems that have lower voltage ratings, necessitating configurations with multiple batteries connected in parallel to achieve the required capacity. This arrangement can increase wiring complexity and potential energy losses due to resistance in the cables, thereby impacting the overall efficiency and performance of hybrid inverter systems. In contrast, high-voltage inverters operate at DC voltages commonly ranging from 150V to over 600V, making them suitable for larger-scale solar power installations.
Advanced inverter topologies such as switched-capacitor reduced switch count multilevel inverters (SC-MLI) have been explored to improve reliability, reduce component count, and optimize performance in renewable energy systems. These innovations assist engineers and researchers in addressing challenges related to power semiconductor switches, voltage handling, and system reliability, thereby advancing the development of efficient and robust inverter technologies.
Furthermore, the operation and performance of photovoltaic (PV) inverters, including low-voltage types, are increasingly governed by technical standards and regulations such as the NC RfG network code and EN-505049-1:2019. These frameworks ensure that inverters comply with grid connection requirements and maintain quality in cooperation with distribution system operators, although national regulations may vary across different EU member states.
Applications in the Energy Sector
Low-voltage inverters play a crucial role in the energy transition by enabling the efficient integration and utilization of renewable energy sources within various sectors of the energy industry. They convert direct current (DC) generated from sources such as photovoltaic (PV) panels and small wind turbines into alternating current (AC) compatible with local grids or off-grid systems, thus serving as a critical component in the balance of system (BOS) for renewable installations.

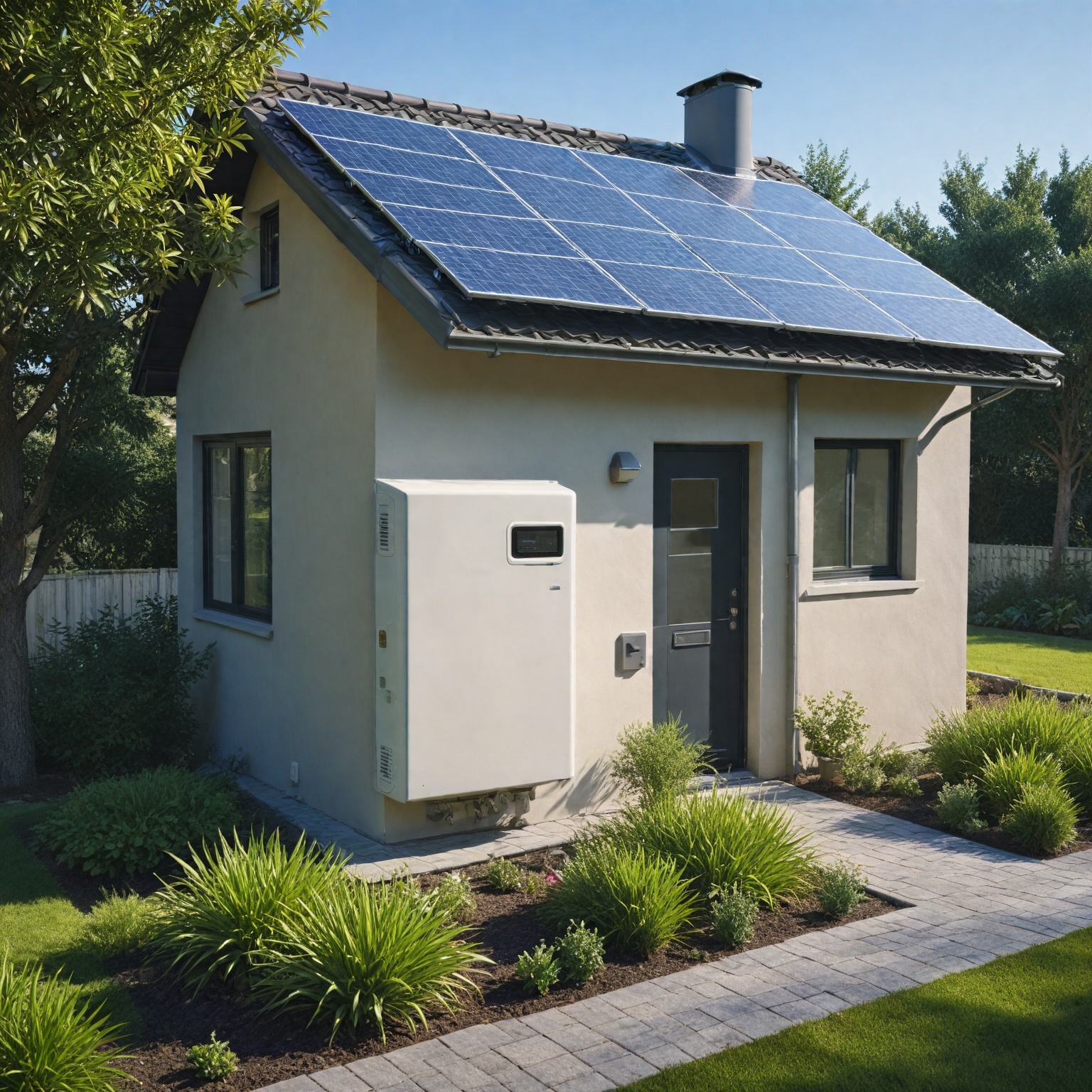

In residential and commercial rooftop PV systems, low-voltage inverters are commonly employed due to their cost-effectiveness, ease of installation, and suitability for small to medium-sized applications. These inverters support the growing adoption of distributed renewable energy by facilitating self-consumption and contributing to the reduction of carbon footprints through improved energy efficiency. Additionally, hybrid inverters, which combine functionalities to manage both energy conversion and storage, are increasingly available through diverse supply channels, further promoting renewable energy accessibility.
Beyond small-scale applications, low-voltage inverters are integral to expanding electric vehicle (EV) infrastructure and industrial motor drives, where high efficiency and retrofit-friendly designs are in demand. The advancements in semiconductor materials and power electronics are enhancing inverter performance, allowing for more compact and reliable systems that meet the complex integration needs of modern energy networks. Furthermore, these inverters are designed to comply with stringent grid codes, providing ancillary services such as load-frequency control, reactive power support, and anti-islanding protection, which are essential for maintaining grid stability in scenarios involving variable renewable energy inputs.
In small wind turbine systems, low-voltage inverters manage the conversion of regulated DC output to grid-compatible AC, often employing advanced multilevel converter topologies to reduce harmonic distortion and improve power quality. The use of full-scale power electronic converters between the generator and load enables comprehensive control over active and reactive power flows, thereby optimizing the turbine’s performance and grid interaction.
Technical Functions and Performance
Low-voltage inverters play a crucial role in the energy transition by efficiently converting direct current (DC) from renewable energy sources such as solar panels and batteries into alternating current (AC), which is compatible with most electrical equipment and the power grid. Their primary technical function is this DC-to-AC conversion, enabling the integration of decentralized renewable energy systems into existing electrical networks. To optimize energy extraction, many solar inverters incorporate Maximum Power Point Tracking (MPPT) technology, which dynamically adjusts the input voltage to harvest the maximum possible power from photovoltaic (PV) arrays.
In addition to conversion and optimization, low-voltage inverters provide several important protective and control functions. Safety features such as anti-islanding protection automatically disconnect the inverter during grid outages to protect personnel and equipment and prevent inverter damage. Filter and protection circuits help reduce harmonic distortion and safeguard the system from overvoltage, thermal stress, and other electrical disturbances, thereby enhancing reliability and performance.
Advanced control strategies further improve the performance and stability of low-voltage inverters. Low Voltage Ride Through (LVRT) capabilities enable inverters to maintain operation during short-duration voltage sags without unnecessary interruptions, only initiating shutdown if low-voltage conditions persist. This function is critical for supporting grid stability during faults and disturbances. Modern control algorithms integrate islanding detection, LVRT, and MPPT within a versatile framework suitable for both grid-connected and standalone modes.
Grid support functionalities have become increasingly important as inverter penetration rises. Low-voltage inverters contribute ancillary services such as reactive power compensation, voltage regulation, and load-frequency control, supporting overall system stability and enabling compliance with evolving grid codes. For example, control schemes have been developed to dynamically inject or absorb reactive power and optimize voltage profiles in low-voltage distribution networks with high PV penetration, thereby increasing the network’s capacity and resilience.
The synchronization and control of inverters involve estimating grid frequency and voltage components at the point of common coupling, with current controllers generating the appropriate switching signals to regulate power output. Grid-forming inverters (GFMs) are gaining attention for their ability to provide frequency and voltage support in low-inertia systems through sophisticated control strategies such as power synchronization loops and current saturation techniques, which enhance transient stability during grid faults.
Contribution to Grid Stability and Power Quality
Low-voltage inverters play a crucial role in maintaining grid stability and enhancing power quality, especially as the energy transition accelerates the integration of renewable energy sources (RES) into power systems. As distributed energy resources (DERs) increasingly connect to low voltage grids, these inverters are required to provide ancillary services such as load-frequency control and reactive power management to support system stability. The dynamic behavior of these inverters during disturbances, including loss of mains events, is influenced by control algorithms incorporating anti-islanding detection and grid support functions.
The evolution from traditional synchronous generator-based power systems to flexible grids dominated by inverter-connected renewable and non-renewable sources has significantly increased the reliance on inverters for system operations. This transformation necessitates enhanced control strategies to maintain voltage and frequency stability, which low-voltage inverters contribute to by regulating energy generation and responding dynamically to grid conditions.
A key grid support functionality provided by low-voltage inverters is the Low-Voltage Ride-Through (LVRT) capability. LVRT ensures that inverters remain connected and continue to supply power during voltage sags, thereby preventing large-scale disconnections that could destabilize the grid. To achieve this, advanced current control algorithms are employed that manage unbalanced voltages while maintaining other control objectives, such as reactive power injection and frequency support. These strategies can be broadly categorized into current limiting and transient stability enhancement approaches, which help in mitigating the effects of fault-induced voltage dips.
Inverter-based renewable systems, which inherently lack the rotational inertia of traditional generators, rely on LVRT and High-Voltage Ride-Through (HVRT) functions to compensate for this deficit. These functionalities help maintain continuous operation during grid disturbances, reduce the risk of cascading failures, and support voltage recovery through reactive power supply. For instance, in wind-integrated grids, the ability of turbines to ride through voltage dips prevents mass disconnections that could otherwise lead to severe frequency and voltage instabilities.
Despite their critical role, the increasing penetration of inverter-based DERs poses challenges to distribution system operators (DSOs), as many inverters are primarily designed to supply power without accounting for grid voltage and frequency deviations. This can lead to more frequent grid events and requires DSOs to implement more sophisticated grid management strategies. Proper utilization and placement of DERs, coupled with enhanced inverter control and coordination, are essential to improve the grid’s structural and operational resiliency.
Environmental Impact and Sustainability
The environmental impact of low-voltage inverters is a critical consideration in their role within the energy transition. Life cycle assessments (LCAs) serve as a fundamental tool for evaluating the energy, material, and emission flows throughout all stages of inverter life, from manufacturing to disposal. Two primary stages dominate the environmental footprint of inverters: manufacturing and operational use. The manufacturing process requires significant raw materials such as copper, aluminum, and silicon, whose extraction can disrupt ecosystems, pollute waterways, and emit toxic substances, while also consuming considerable energy and contributing to greenhouse gas emissions. Additionally, manufacturing involves complex procedures that release air and water pollutants, further intensifying environmental concerns.
During the operational phase, low power inverters (ranging from 2.5 to 20 kW) coupled with lithium-ion battery storage play a vital role in enabling distributed energy resources (DERs), supporting a transition to cleaner energy systems and grid decarbonization. However, the environmental benefits gained during use must be balanced against the impacts from production and end-of-life treatment.
Recycling presents a promising avenue to mitigate the environmental burden associated with inverter disposal. Despite increased efforts to recycle inverters, their intricate construction complicates material separation, leading to many units being relegated to landfills. This situation underscores the need for enhanced sustainable design and recycling strategies.
Recent developments include scalable life cycle inventory (LCI) models that provide detailed mass composition and manufacturing data for power electronic inverter units. These models help close existing data gaps in environmental assessments and enable more accurate analysis and component scaling, thereby informing more sustainable manufacturing practices.
Technological Advances
The evolution of power semiconductor devices has been fundamental in advancing low-voltage inverters, significantly impacting their efficiency, power density, and reliability. The introduction of Insulated Gate Bipolar Transistors (IGBTs) in 1985 marked a pivotal moment by combining the high-voltage handling of bipolar transistors with the fast switching of MOSFETs, thereby enabling more efficient and compact power electronics systems used in electric vehicles (EVs) and renewable energy applications. Subsequently, the development of wide-bandgap semiconductor materials such as silicon carbide (SiC) and gallium nitride (GaN) has opened new horizons for inverter technology. These materials exhibit superior electrical properties, including higher breakdown voltages, faster switching speeds, and better thermal performance, which translate into lower power losses, higher efficiency, and reduced cooling requirements in inverter designs.
Wide-bandgap devices have allowed power systems to operate at higher voltages and temperatures while maintaining ruggedness and reliability. This capability is critical for integrating renewable energy sources and managing power in EVs, where efficient energy conversion and compact designs are essential. The maturity of SiC and GaN technologies supports the development of reliable, scalable inverter units capable of handling nominal powers from 20 to 200 kW and DC system voltages ranging from 250 to 700 V, providing flexibility for automotive traction and industrial applications.
In addition to semiconductor advancements, inverter topologies have evolved to meet diverse application needs. For example, cascade multilevel inverters employ series-connected H-bridge units to synthesize desired AC voltages from multiple DC sources such as batteries and wind turbines, enabling improved waveform quality and scalability. The choice between high- and low-voltage inverters depends on the specific system voltage requirements and application scale, with low-voltage inverters preferred for smaller setups (under 1 kW
Challenges and Limitations
The integration of low-voltage (LV) inverters into modern power distribution networks presents several technical and regulatory challenges that impact both distribution system operators (DSOs) and end-users. A significant concern arises from the increasing penetration of photovoltaic (PV) installations connected to LV networks, which can cause voltage regulation problems such as reverse power flow and voltage rise. These issues necessitate grid reinforcements by operators to maintain safe and reliable operations, thereby increasing infrastructure costs and complexity.
DSOs often perceive PV systems as potential disruptors to grid stability due to power quality issues related to voltage regulation and overall network stability. Traditional standards have tended to emphasize disconnection during faults or abnormal conditions to protect the grid, but this approach can hinder the integration of distributed generation (DG) resources. Modern smart inverter functionalities, including active and reactive power management, help mitigate these problems by improving voltage profiles and reducing frequent disconnections, which in turn enhances energy production and economic returns for PV owners.
From a regulatory perspective, the diversity of national regulations within the European Union and globally adds complexity to inverter operation and testing. Current standards, such as the NC RfG network code and technical standard EN-505049-1:2019, cover a limited scope of PV inverter functionalities. Tests performed by accredited laboratories often focus narrowly on compliance with these standards and may not fully address the practical expectations and requirements of DSOs dealing with real-world grid integration challenges.
The dynamic behavior of inverters, particularly grid-following (GFL) types, is influenced by nonlinearities and control loop complexities that can lead to instability during large disturbances. The control systems within Voltage Source Converters (VSCs) must regulate both real and reactive power while managing current to maintain system stability. However, challenges such as tuning controllers for low-frequency disturbances and addressing the interaction with other distributed energy resources remain unresolved.
Another limitation concerns the coordination and quality of interconnection-wide models used for grid planning and operation. For example, standards like MOD-032-1 do not require the use of feedback loops to correct modeling inaccuracies, and the comparison between modeled and actual system conditions is encouraged but not mandatory. This gap in modeling standards can affect the reliability and resilience of power systems as renewable penetration increases.
Economic and market factors also pose challenges. High initial costs for advanced inverter systems, regulatory complexities across jurisdictions, supply chain disruptions, and rapid technological advancements leading to obsolescence all act as barriers to widespread adoption and deployment. These factors complicate strategic planning for manufacturers and utilities alike. However, strong government incentives, tax benefits, and environmental concerns in regions like North America are driving higher adoption rates despite these limitations.
Finally, the increasing share of distributed energy resources (DERs) connected to LV networks requires inverters to provide ancillary services such as load-frequency control, reactive power support, and anti-islanding detection to support system stability. Grid codes have evolved to mandate these capabilities, but their implementation introduces additional complexity to inverter design and operation.
Future Perspectives
The future of low-voltage inverters is closely tied to the broader energy transition aimed at reducing carbon emissions and enhancing grid resilience. As the global energy demand continues to rise, the shift from fossil fuel-based generation to renewable and low-carbon energy sources is becoming imperative. Low-voltage inverters, integral to power electronics, are expected to play a central role in this transition by enabling efficient integration and control of Distributed Energy Resources (DERs) such as photovoltaic (PV) systems and other renewable technologies.
Technological advancements in inverter design and control methods are paving the way for smarter, more adaptive energy systems. For example, emerging control schemes that dynamically adjust inverter operation based on real-time grid conditions are being proposed to optimize voltage support and maximize DER capacity utilization while maintaining system stability. These innovations help address the challenges of integrating increasing amounts of distributed generation into existing grids without compromising reliability or power quality.
Furthermore, the integration of smart inverter technologies with Internet of Things (IoT), machine learning, and artificial intelligence is expected to enhance grid services by enabling more responsive and autonomous management of electricity flows. This cyber-physical approach also introduces new considerations for grid cybersecurity, requiring robust solutions to safeguard critical infrastructure.
On the manufacturing side, scalable design models for inverter units, particularly those intended for automotive traction motor control, are being developed to support a range of power and voltage levels, enhancing flexibility and facilitating mass deployment of power electronic systems. Comprehensive life cycle inventory (LCI) models that couple manufacturing data with scalable designs help assess environmental impacts and guide sustainable production practices.
